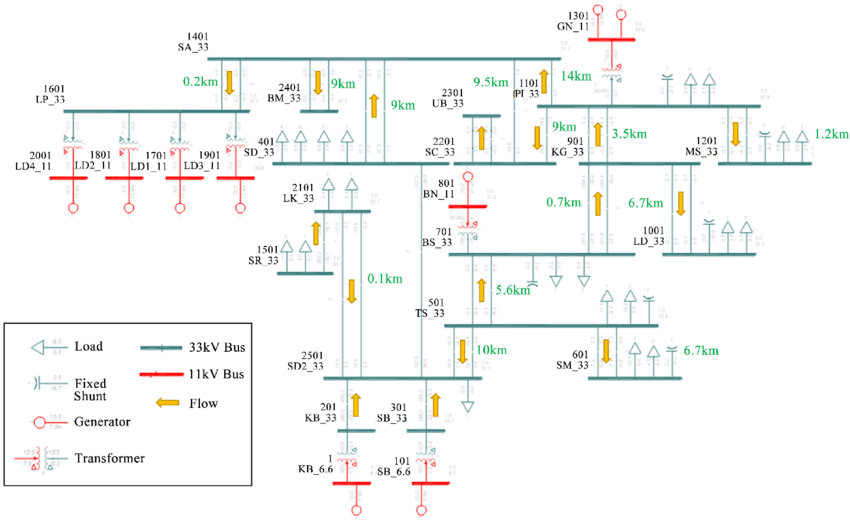

Steady-State Load Flow for Large Utility Systems

Steady-state load flow analysis is foundational for power system planning and operation. In PSS®E, this involves calculating bus voltages, angles, active and reactive power flows, transformer tap positions, and reactive compensation effectiveness across large-scale transmission systems. Load flow helps operators determine optimal voltage profiles and network losses, and is critical for developing switching strategies and preventive maintenance planning.

Software Tools: PSS®E, PSS®MOD, PowerWorld

BPSCO Services Include: Complete base case modeling, validation against EMS snapshots, development of switching sequences for network reconfiguration, and support for utility interconnection requirements.

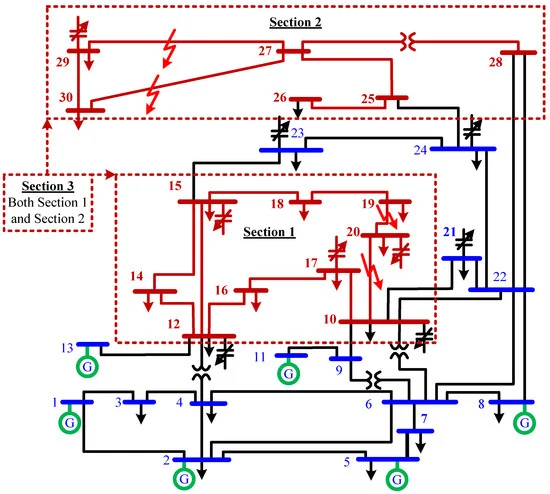

Contingency and N-1/N-2 Analysis

Contingency analysis assesses the robustness of the power grid by simulating the loss of one (N-1) or more (N-2) components under high-stress operating conditions. Using PSS®E’s ACCC module, BPSCO evaluates thousands of potential contingencies quickly to highlight thermal overloads, voltage collapse, and islanding risks. These studies guide protection scheme optimization and ensure compliance with NERC TPL standards.

Software Tools: PSS®E ACCC, DSATools, PowerWorld

BPSCO Services Include: Comprehensive contingency list creation, evaluation of remedial actions (generation rescheduling, load shedding), voltage stability margin calculations, and reliability compliance support.

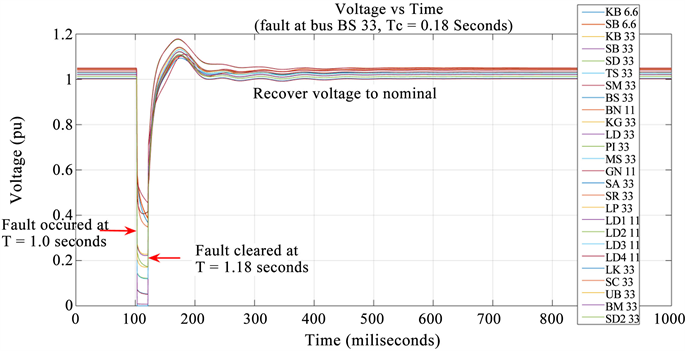

Transient Stability and Generator Rotor Angle Simulation

Transient stability studies assess system performance under sudden large disturbances, such as faults, generator trips, or load shedding events. These simulations track rotor angles, generator speeds, and voltage recovery across the network. PSS®E’s dynamic simulation engine helps determine Critical Clearing Times (CCT) and post-fault system equilibrium conditions, enabling operators to set proper protection thresholds and design resilient systems.

Software Tools: PSS®E Dynamics, DIgSILENT PowerFactory

BPSCO Services Include: Multi-scenario disturbance analysis, dynamic model calibration, stability margin reporting, and simulation of breaker failure scenarios and delayed clearing events.

Dynamic Modeling of AVR, Governor, PSS Controllers

Dynamic models of excitation systems (AVRs), governors, and Power System Stabilizers (PSS) are essential for time-domain stability simulations. PSS®E includes standard IEEE models (e.g., IEEE Type 1, 2 AVRs), as well as utilities' custom control blocks. Accurate modeling ensures correct system response during disturbances and helps utilities meet interconnection and performance standards.

Software Tools: PSS®E, MATLAB, Simulink

BPSCO Services Include: Parameter tuning, time-series controller testing, validation of commissioning data, and user-defined model development using PSS®E COMP.

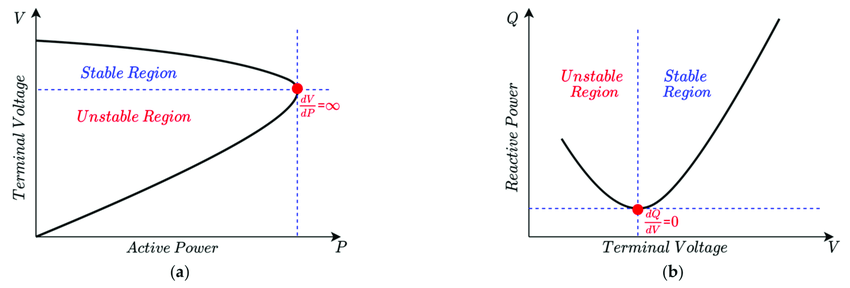

Voltage Stability, PV and QV Curve Analysis

Voltage stability studies identify the point at which voltage collapse may occur due to inadequate reactive power support. PV (Power-Voltage) and QV (Reactive Power-Voltage) curves are generated to visualize the system's proximity to voltage instability under varying load and generation scenarios. These studies help define reactive reserve requirements and recommend placement of capacitors, STATCOMs, or synchronous condensers.

Software Tools: PSS®E VSAT, DSATools, DIgSILENT

BPSCO Services Include: Weak bus identification, V-Q sensitivity calculation, generation of PV/QV profiles for planning scenarios, and voltage support equipment specification.

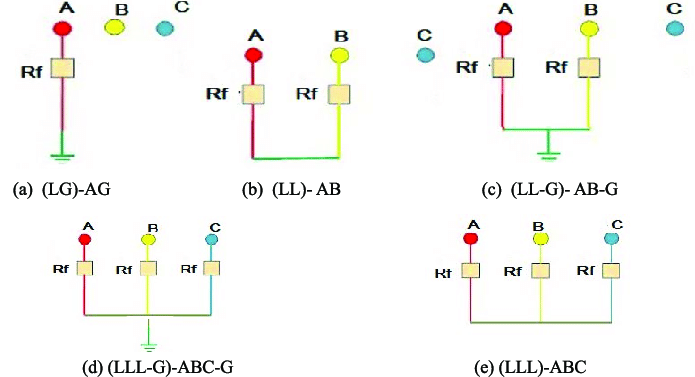

Fault Analysis: Symmetrical and Asymmetrical Faults

Short circuit studies using PSS®E evaluate current levels resulting from various fault types (3-phase, SLG, LLG, LL). These calculations are used for verifying circuit breaker interrupt ratings, validating relay settings, and confirming safe operating conditions during faulted states. The fault location, X/R ratio, and fault impedance impact the accuracy of protection schemes and post-fault restoration plans.

Software Tools: PSS®E Fault Analysis Module, ASPEN OneLiner, CAPE

BPSCO Services Include: Fault current calculation for normal and backup protection, identification of high fault duty buses, relay coordination integration, and equipment duty comparison with IEEE C37 standards.

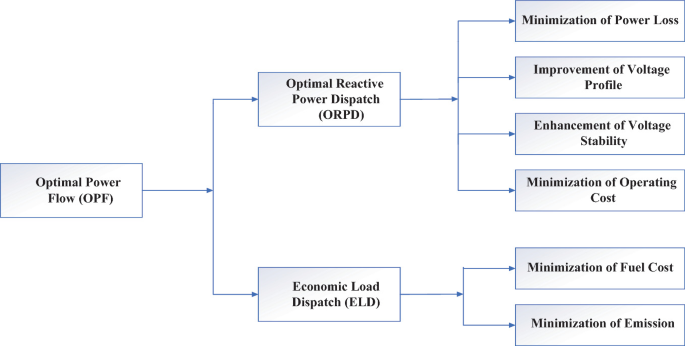

Optimal Power Flow (OPF) and Economic Dispatch

OPF studies optimize generator outputs and control settings to minimize fuel costs, losses, or emissions, while meeting all network constraints. Economic dispatch within OPF minimizes operating costs under reserve and ramp rate limits. These studies inform market operations, congestion management, and grid modernization efforts.

Software Tools: PSS®E OPF, PowerWorld OPF, Matpower (MATLAB)

BPSCO Services Include: Development of cost functions, marginal price (LMP) evaluation, generator participation factor tuning, and scenario analysis for transmission upgrades and policy compliance.

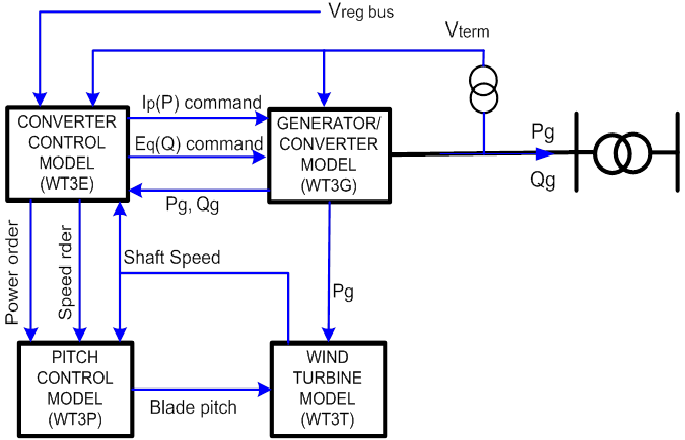

Generator Interconnection and Renewable Studies

These studies assess the technical feasibility and compliance of connecting new generators—including solar PV, wind, and BESS—to the transmission grid. PSS®E is used for steady-state and dynamic validation, while PSCAD supports EMT-level studies. Key deliverables include interconnection requirements, LVRT/HVRT compliance, voltage flicker mitigation, and post-fault ride-through performance.

Software Tools: PSS®E, PSCAD, PSSE-GNET, MATLAB

BPSCO Services Include: Queue application support, performance requirement documentation, coordinated protection and control design, and EMT-to-RMS model integration.

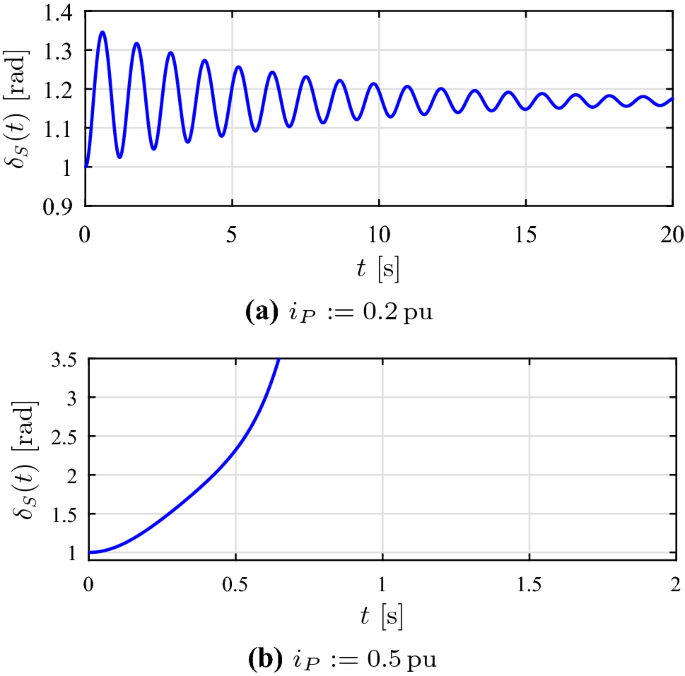

Modal and Small Signal Stability Analysis

This analysis linearizes the system model around an operating point and determines the eigenvalues of the system matrix to identify oscillatory modes. Poorly damped modes may lead to inter-area oscillations or loss of synchronism. BPSCO performs sensitivity and participation factor analysis to guide damping control strategies such as PSS tuning or FACTS deployment.

Software Tools: PSS®E Small Signal Module, DIgSILENT Modal Analysis, MATLAB

BPSCO Services Include: Eigenvalue extraction, participation analysis, mode shape visualization, damping ratio improvement studies, and regulator control optimization.

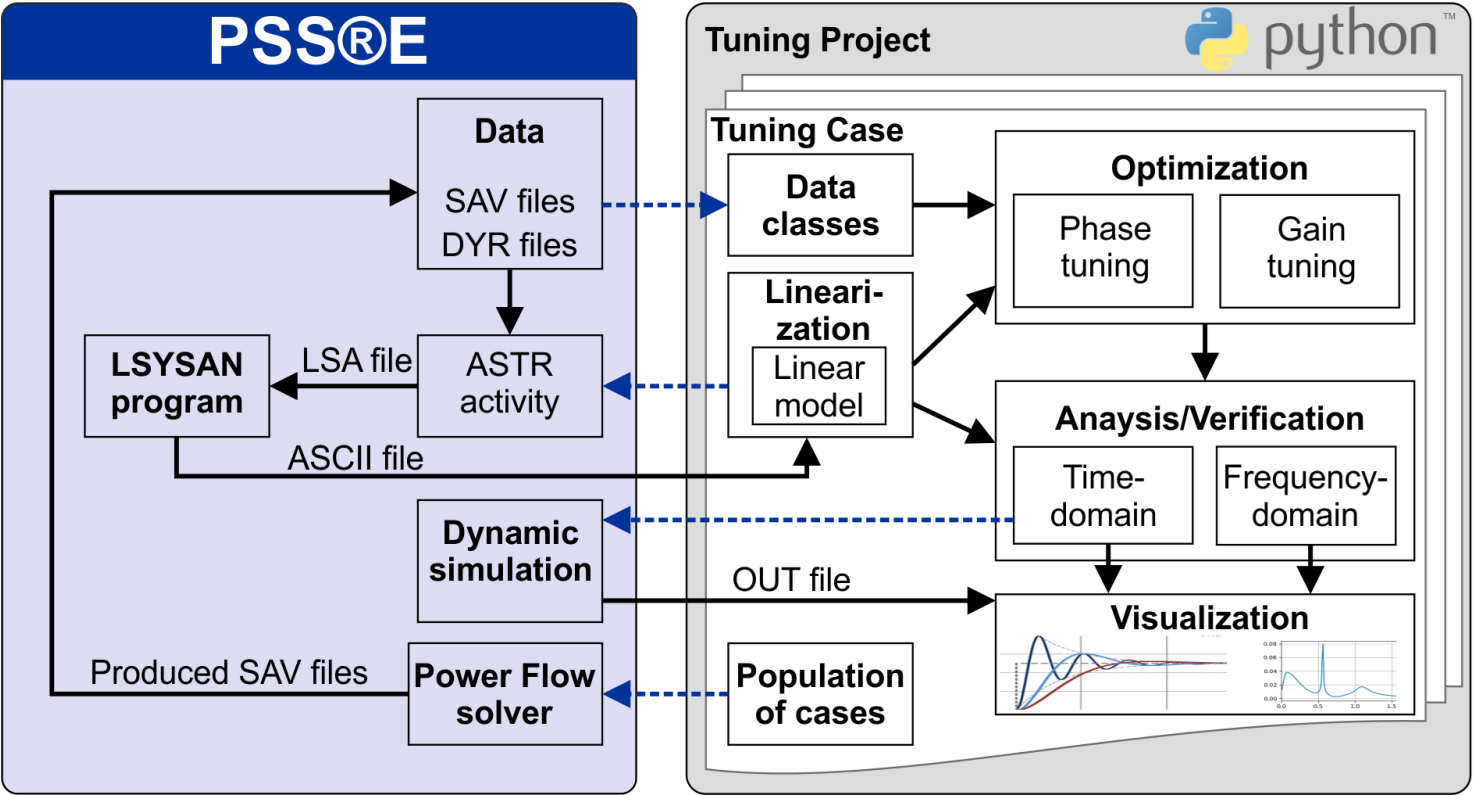

Batch Automation with Python Scripting

PSS®E supports Python scripting for automation of complex simulation workflows, post-processing of results, and integration with external databases. Batch automation is essential for managing study requests across different planning scenarios or time-series simulations. BPSCO uses Python to enhance reproducibility, efficiency, and scale in all study types.

Software Tools: PSS®E Python API, pandas, NumPy, matplotlib, SQLAlchemy

BPSCO Services Include: Script development for automatic case creation, iterative contingency analysis, graphical result output, and Python-PSS®E training for utility engineers.
